AIRBEST ยางดูดขนาดใหญ่ สำหรับดูดจับแผ่นไม้
2022-09-30 13:37:42 ใน News »
0
387

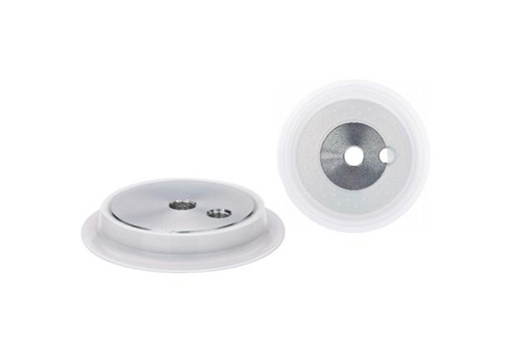

AIRBEST - SFGT Series
ยางดูดขนาดใหญ่สำหรับวัตถุที่มีผิวเรียบและหยาบ ใช้สำหรับดูดจับแผ่นไม้
Selection Guide
SFGT 120 WS - G3F
① ② ③ ④
| ① Series | ② Diameter | ③ Material & Hardness | ④ Connection thread |
| SFGT | 65 - φ65mm | WS - White silicone | Nil - Suction cup only |
| 90 - φ90mm | G3F - G3/8 female thread | ||
| 120 - φ120mm | G4F - G1/2 female thread | ||
| 160 - φ160mm |
Technical parameters
| Model | Pull-out force N |
Inner volume cm³ |
Recommended hose Dia. mm |
Weight g |
MPQ pcs |
| SFGT65-G3F | 110 | 3.5 | 8 | 48 | 1 |
| SFGT90-G3F | 320 | 11 | 8 | 110 | 1 |
| SFGT120-G3F | 550 | 25 | 10 | 226 | 1 |
| SFGT160-G4F | 1010 | 81 | 10 | 584 | 1 |
Dimensions
| Model/Size | φDmax | φD | G1 | H | Y | LG |
| SFGT65-G3F | 65 | 55 | G3/8 | 16.5 | 3 | 9.5 |
| SFGT90-G3F | 90 | 79.5 | G3/8 | 17 | 2.5 | 11 |
| Model/Size | φDmax | φD | φD1 | G1 | G2 | H | Y | LG |
| SFGT120-G3F | 120 | 108 | 52 | G3/8 | G1/4 | 17.4 | 2.9 | 11 |
| SFGT160-G4F | 160 | 150 | 60 | G1/2 | G1/4 | 24.4 | 5.2 | 15.2 |
